2579 Single Revolution Spring Clutch

2579 Single Revolution Spring Clutch

2579 Single Revolution Spring Clutch

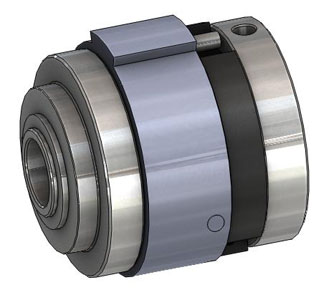

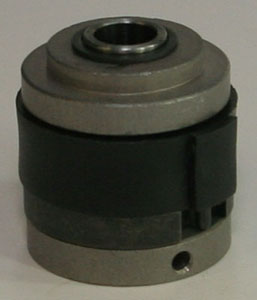

The Tiny-Clutch 2579 Single Revolution Spring Clutch is based off of our SP75D Wrap Spring Clutch. This clutch features a 1 lug (Single Revolution) collar & an over-tavel stop. It has a 3/8" | 9.5mm bore & mounts with a cross hole. If you have special needs for your application please Let Us Know.

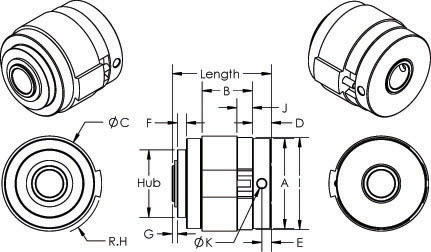

2579 Single Revolution Spring Clutch, Dimensions
Specifications: Options:
Max Torque 50 in/lbs | 5.6Nm Bore 3/8" | 9.5 mm
Length
1.32 in | 33.5 mm Mounting Cross Hole
Hub 0.937 in | 23.8 mm Drive Counter Clockwise
Dimension A
1.25 in | 31.8 mm Input Hub
Dimension B
0.70 in | 17.8 mm Function Indexing
Dimension C
1.32 in | 33.5 mm # of Trip Lugs
1 Lug (Single Revolution)
Dimension D 0.26 in | 6.6 mm Hub Type
Plain Drum
Dimension E 0.13 in | 3.3 mm Add-Ons
Over-Travel Stop
Dimension F 0.12 in | 3.0 mm
Dimension G 0.07 in | 1.8 mm
Dimension H 0.72 in | 18.3 mm
Dimension I 1.28 in | 32.5 mm
Dimension J 0.21 in | 5.3 mm
Dimension K 1/8" Cross Hole

2579 Single Revolution Spring Clutch

Contact us with your needs & we will help you choose the right clutch!
